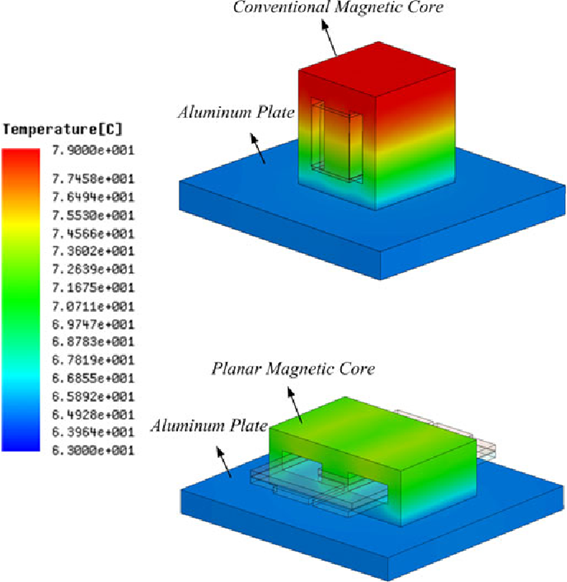

Figure 2. Heat Management
⚙️ The Best Design Practices

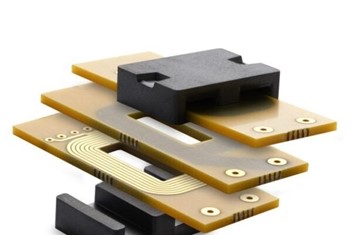

Now that we've explored the benefits and challenges, we can discuss the best practices for designing HFPM. Let’s start with the Skin Effect Mitigation: engineers can employ techniques such as litz wire or foil conductors to minimize the skin effect and ensure optimal current distribution. The material selection is also crucial, and a careful consideration of core materials is essential. Engineers should opt for materials specifically designed for high-frequency applications, ensuring minimal core loss and high permeability.
📉 Parasitic effects reduction needs to be mentioned as well: engineers should employ layout and component placement strategies to minimize parasitic capacitance and inductance. Proper grounding and shielding can also help reduce unwanted effects.
And finally, the Heat control, as an effective heat management is critical for HFPM components. Engineers should integrate heat sinks, thermal vias, and other cooling solutions to prevent overheating and ensure long-term reliability.
🤌 Where to Use High-Frequency Planar Magnetics and Why
HFPM components find their best use in various applications across different industries. First, there’s Power Electronics, where HFPM is a cornerstone in compact, high-efficiency power conversion systems, including DC-DC converters, voltage regulators, and high-frequency power supplies. Its efficiency benefits are crucial in conserving energy and reducing waste heat.
📡 Then, there’s Telecommunications, as the fast response time and reduced EMI of HFPM make it an ideal choice for telecommunications equipment, ensuring reliable and efficient power delivery. We need to also mention Aerospace and Avionics, where HFPM helps minimize interference while providing compact and lightweight solutions in EMI-sensitive environments, like aircraft and satellites.
Medical Devices is another field where High-Frequency Planar Magnetics are highly employed. HFPM's compact size and EMI reduction are crucial in medical equipment, where reliability, space constraints, and low EMI are paramount. And finally, Data Centers, where high-frequency power supplies benefit from HFPM's compactness and efficiency, ensuring stable power delivery in data centers and server farms.
💭 What I´ve learned
In conclusion, High-Frequency Planar Magnetics is a transformative technology that offers significant advantages while presenting unique challenges. By adhering to best design practices and leveraging the benefits of HFPM, engineers can unlock their potential in a wide range of applications, from power electronics to telecommunications and beyond.
🚀 If you're exploring the integration of HFPM in your projects or have specific questions, feel free to reach out to us. We're here to help you unlock the full potential of this game-changing technology!
